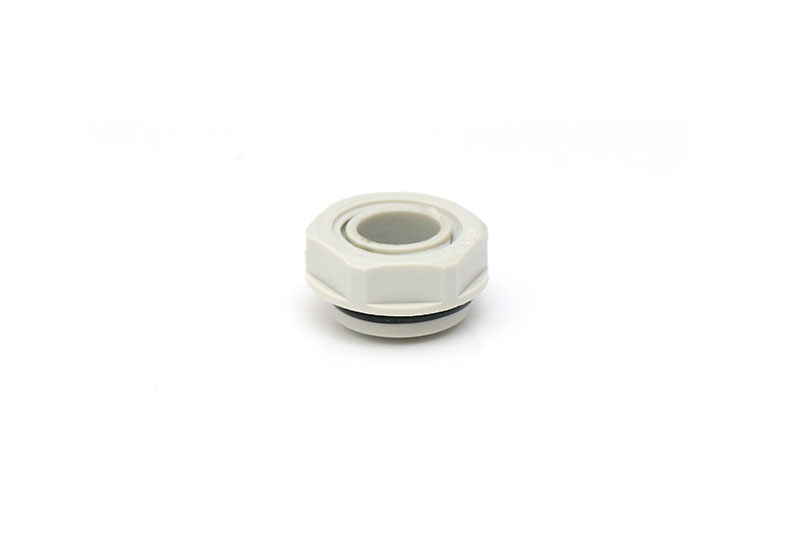

Polyamide Plug
Category: Nylon Products
Product details
Product Overview
材料：PA6
防護等級：IP68
工作溫度：-40℃至100℃
顏色種類：黑色(B),灰白色(G)，其他顏色可定制
應用場合：對預留孔進行密封，為系統擴展提供便捷
更多選擇 可提供加長螺紋
供貨周期：備有大量現貨，特大量需確認
Structure Chart
Technical Parameter
DPK-M 公制螺紋
| Artice no. | Thread Dimension(mm) | Thread AG(mm) | Wrench size(mm) | Total Length |
| DPK-M12 | M12*1.5 | 12 | 16 | 9.5 |
| DPK-M16 | M16*1.5 | 16 | 20 | 10 |
| DPK-M18 | M18*1.5 | 18 | 22 | 11 |
| DPK-M20 | M20*1.5 | 20 | 24 | 11 |
| DPK-M22 | M22*1.5 | 22 | 26 | 11 |
| DPK-M25 | M25*1.5 | 25 | 29 | 11 |
| DPK-M27 | M27*1.5 | 27 | 33 | 11 |
| DPK-M32 | M32*1.5 | 32 | 38 | 11 |
| DPK-M40 | M40*1.5 | 40 | 46 | 12 |
| DPK-M50 | M50*1.5 | 50 | 56 | 12 |
| DPK-M63 | M63*1.5 | 63 | 69 | 12 |
DPK-M 公制螺紋
| Artice no. | Thread Dimension(mm) | Thread AG(mm) | Wrench size(mm) | Total Length |
| DPK-P7 | PG7 | 12.5 | 16.5 | 9.5 |
| DPK-P9 | PG9 | 15.2 | 19.2 | 9.5 |
| DPK-P11 | PG11 | 18.6 | 22.6 | 10 |
| DPK-P13.5 | PG13.5 | 20.4 | 24.4 | 11 |
| DPK-P16 | PG16 | 22.5 | 26.5 | 11 |
| DPK-P21 | PG21 | 28.3 | 32.3 | 11 |
| DPK-P29 | PG29 | 37 | 33 | 12 |
| DPK-P36 | PG36 | 47 | 53 | 12 |
| S5P-P42 | PG42 | 54 | 60 | 12 |
| DPK-P48 | PG48 | 59.3 | 65.3 | 12 |
